製品詳細
起源の場所: 江蘇省、中国
ブランド名: Hongbao
証明: DNV,PED,ISO,TUV,LR
モデル番号: HB-TI
支払いと送料の条件
最小注文数量: 200kg
価格: negotiable
パッケージの詳細: 耐航性のある合板ケース梱包。
受渡し時間: 50日以内に
支払条件: D/P、L/C、D/A、L/C、ウェスタンユニオン
供給の能力: 800MT/年
材料：: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
証明書：: |
DNV,PED,ISO,TUV,LR |
厚さ:: |
0.4-10mm |
OD:: |
10-114MM |
長さ：: |
100〜15000mm |
形：: |
ラウンド |
材料：: |
Gr1,Gr2,Gr3,Gr7,G9,Gr12 |
証明書：: |
DNV,PED,ISO,TUV,LR |
厚さ:: |
0.4-10mm |
OD:: |
10-114MM |
長さ：: |
100〜15000mm |
形：: |
ラウンド |

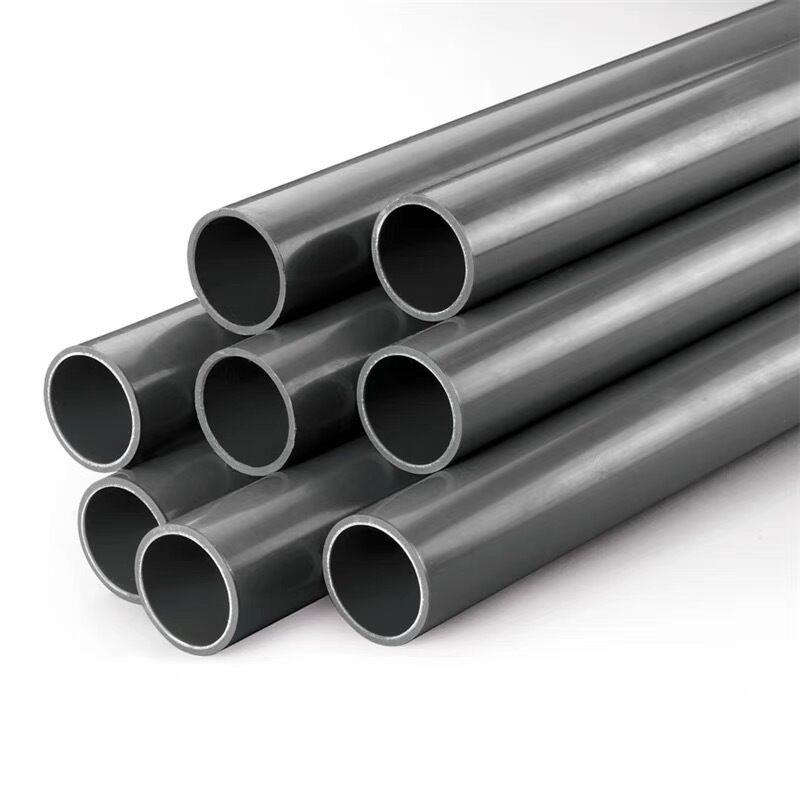

Engineered for demanding environments, our Gr12 (Ti-0.3Mo-0.8Ni) titanium alloy tube offers the optimal balance of formability and corrosion resistance.
Ideal For: Chemical processing, desalination plants, and marine exhaust systems. The reliable choice for extended service life in aggressive media.
| Standard | ASTM B337, ASTM B338, ASTM B861, ASTM B862 |
|---|---|
| Grade | Gr1, Gr2, Gr7, Gr9, Gr12 |
| Dimension | OD*WT*L (10-114)*(0.4-10)*(100-15000)mm |
| Manufacturing Method | Cold rolled |
| Condition | Annealed(M) |
| Features | Light weight, excellent corrosion resistivity, strongly heat-resistance, high strength |
| Inspection | Ultrasonic testing, Hydrostatic testing, Flattening testing, visual surface inspection, Dimensional inspection, tensile properties inspection and Chemical elements analysis |
| Grade | Tensile Strength, min | Yield Strength 0.2% offset Yield | Elongation in 2in or 50mm Min% |
|---|---|---|---|
| 1 | 35 Ksi / 240 Mpa | 20-45 Ksi / 138-310 Mpa | 24 |
| 2 | 50 Ksi / 345 Mpa | 40-65 Ksi / 275-450 Mpa | 20 |
| 7 | 50 Ksi / 345 Mpa | 40-65 Ksi / 275-450 Mpa | 20 |
| 9A | 125 Ksi / 860 Mpa | 105 Ksi / 725 Mpa | 10 |
| 9B | 90 Ksi / 620 Mpa | 70 Ksi / 483 Mpa | 15 |
| 12 | 70 Ksi / 483 Mpa | 50 Ksi / 345 Mpa | 18 |
A. Properties for cold-worked and stress-relieved B. Annealed. C. Solution treated
| Standard | OD Tolerance | WT Tolerance |
|---|---|---|
| ASTM B338 | <25.4mm, ±0.102mm | ±10% |
| 24.4-38.1mm ±0.127mm | ||
| 38.1-50.8mm ±0.152mm | ||
| 50.8-63.5mm ±0.178mm | ||
| 60.3-88.9mm ±0.254mm | ||
| ASTM B861 | 3.2-3.8mm -0.794/+0.397mm | ±12.5% |
| 38-102mm ±0.794mm | ||
| 102-203mm 0.794/+1.588mm |
